Why Is There Water Under My Samsung Refrigerator Crisper Drawers? A Technician’s Guide
If you open your Samsung French door refrigerator and find a puddle of water sitting beneath your crisping drawers—or notice ice frozen solid across the floor of the main fresh food compartment—you are not alone.
Many homeowners initially assume someone spilled a bottle of water or that the water filter is leaking. But when the water continuously returns day after day, the true culprit is almost always located behind the rear cabinet panel: a frozen fresh food evaporator condensate drain tube.
Left unaddressed, this minor drainage failure quickly escalates. Moisture builds up around the main cooling coils, leading to heavy frost buildup that eventually contacts the circulating fan blade—causing a loud grinding or squeal noise inside your fridge before the fan seizes entirely.
Below is an expert breakdown of how your Samsung fresh food drain system operates, why the drain hole freezes shut, and how trapped water turns into a noisy, icing-up evaporator fan.

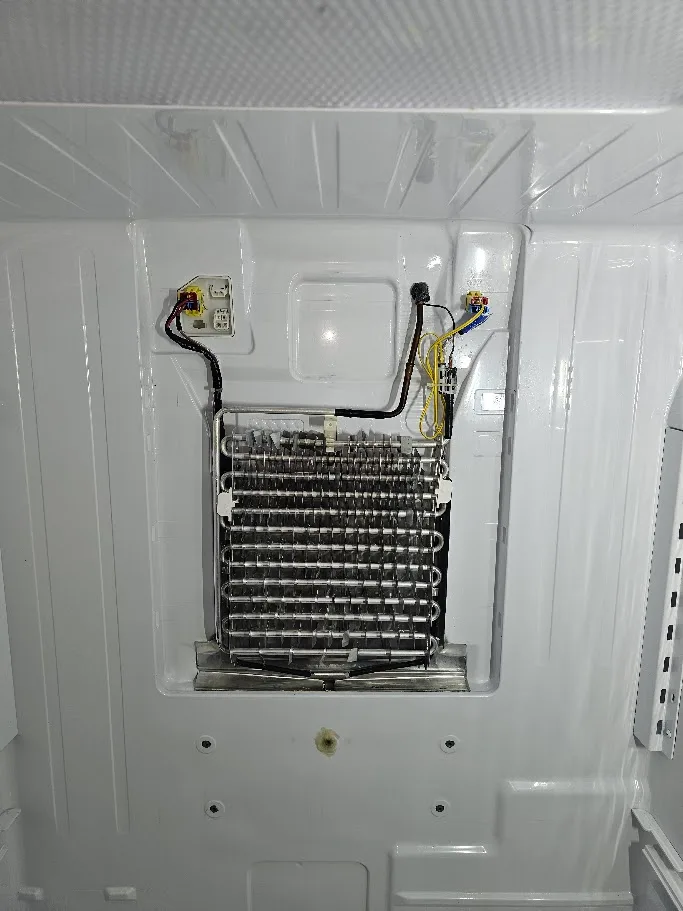

How the Samsung Fresh Food Evaporator Drain System Works
To keep your food fresh at 37°F–38°F, the fresh food compartment relies on a dedicated cooling evaporator located behind the plastic back wall inside the cabinet.
- 1. Moisture Infiltration & Removal: Every time you open the fresh food doors, warm, humid room air enters the cabinet. As the fresh food fan circulates this humid air throughout the compartment and across the sub-zero evaporator coils, the cold metal fins extract that ambient moisture. The humidity rapidly turns into droplets and collects on the evaporator fins as a fine layer of frost.
- Defrost Cycle: Several times a day, the main control board turns on a defrost heater attached to the coils. The heat melts the frost into liquid water droplets.
- The Drain Path: The melted water flows down a aluminum trough at the bottom of the evaporator assembly, funneling straight into a tiny condensate drain hole.
- Evaporation Pan: From the drain hole, the water travels down a tube exiting the rear of the refrigerator, where it empties into a drain pan near the warm compressor to evaporate naturally.
The Root Cause: A Frozen Drain Hole
The entire drainage process relies on gravity and a completely unobstructed drain port. Unfortunately, Samsung engineered this drain trough directly below sub-zero cooling coils.
1. The Short Drain Tab Failure
From the factory, Samsung installed a small metal heat-conductor tab attached to the defrost heater, extending down into the drain hole to keep it clear of ice during defrost cycles. On many models, this tab was designed too short or lacked enough surface area.
2. The Freezing Cascade
Because the drain opening sits near the cold evaporator fins:
- Water remaining inside the drain hole freezes before it can clear the cabinet.
- The next defrost cycle melts more frost, but with the drain hole blocked, the water has nowhere to go.
- Water overflows the trough, running down the back cabinet wall and accumulating under the vegetable crisper drawers.
- In high-humidity environments like Florida, this standing water quickly turns into a solid sheet of ice across the bottom of the fridge.
The Grinding Noise: How a Clogged Drain Icies Up the Evaporator Fan
When water cannot drain out of the cabinet, the relative humidity behind the plastic rear panel spikes to 100%. This triggers a classic secondary failure: evaporator fan icing.
[ Clogged Drain Port ] ──> [ Water Overflows Trough ] ──> [ Humidity Spikes Behind Wall ]
│
[ Fan Seizes / Stops ] <── [ Blades Strike Solid Ice ] <── [ Heavy Frost Encases Fan Casing ]Phase 1: Heavy Frost Accumulation
Instead of draining out to the compressor pan, the trapped moisture continuously refreezes onto the evaporator coils and surrounding plastic housing, building up a thick wall of white frost.
Phase 2: The Grinding / Squealing Sound
The fresh food evaporator fan sits directly above the cooling coils, responsible for circulating cold air throughout the shelves. As frost expands upward into the fan shroud:
- The spinning plastic fan blades start ticking or light-scraping against the encroaching ice sheet.
- Within days, this accelerates into a loud, metallic grinding, squealing, or humming noise that often stops temporarily whenever you open the refrigerator door (which cuts power to the door-switch fan circuit).
Phase 3: Total Silence & Rising Temperatures
Eventually, the ice layer becomes so thick that the fan blades are choked completely. The motor seizes, the grinding noise suddenly stops, and your refrigerator display panel begins warming up to 50°F+ because cold air can no longer circulate through the cabinet.
Diagnostic Error Codes Related to Evaporator Drain & Fan Failures
When the evaporator fan seizes or temperature sensors detect abnormal frost buildup, your display panel may begin blinking or report specific error codes:
Error CodePrimary CauseCommon FixError 22 (22 E)Fresh Food Fan Motor ErrorClear Ice / Replace Fan AssemblyError 25 (25 E)Fresh Food Defrost ErrorUnclog Drain / Replace Defrost Sensor
Why Temporary Thaws and Hairdryers Don’t Work
Using a hairdryer, steamer, or unplugging the fridge for 24 hours to melt the ice will quiet down the fan and temporarily clear the water under your drawers. However, the issue will return within a couple days.
- The Drain Hole Remains Vulnerable: Simply melting the ice does not fix the undersized factory heat tab or clean out the gunk in the duckbill check valves at the back of the unit.
- Risk of Thermal Damage: Blowing hot air inside the fresh food compartment easily warps the thin, plastic rear air duct or damages the delicate evaporator thermistors.
Expert Samsung Refrigerator Drain & Fan Repair in Port St. Lucie
Fixing a Samsung refrigerator fresh food drain issue permanently requires an updated service procedure that targets both the internal cabinet components and the rear discharge path:
- Upgraded Drain Evaporator Clips: Installing an extended OEM copper/aluminum heat conductor tab that extends deeper into the drain hole, ensuring heater warmth penetrates the drain port during every cycle.
- Duckbill Valve Inspection & Replacement: Cleaning or replacing the gunked-up rubber check valves on the back of the cabinet (behind the compressor panel) to prevent back-drafting air while allowing water to freely exit.
- Evaporator Housing Restoration: Completely clearing all ice buildup, inspecting the fan motor blades/bearings for physical damage, and replacing damaged thermistors or fan assemblies if Error 22/25 has tripped.
If you are tired of mopping up water under your crisper drawers or hearing a loud grinding noise coming from your fridge, let a certified professional resolve the underlying drain failure once and for all.
At Port St. Lucie Appliance Repair, we specialize in diagnosing and permanently fixing Samsung cooling loop and drainage failures across Port St. Lucie.
Ready to book? Call (772) 501-9870 or contact us.
